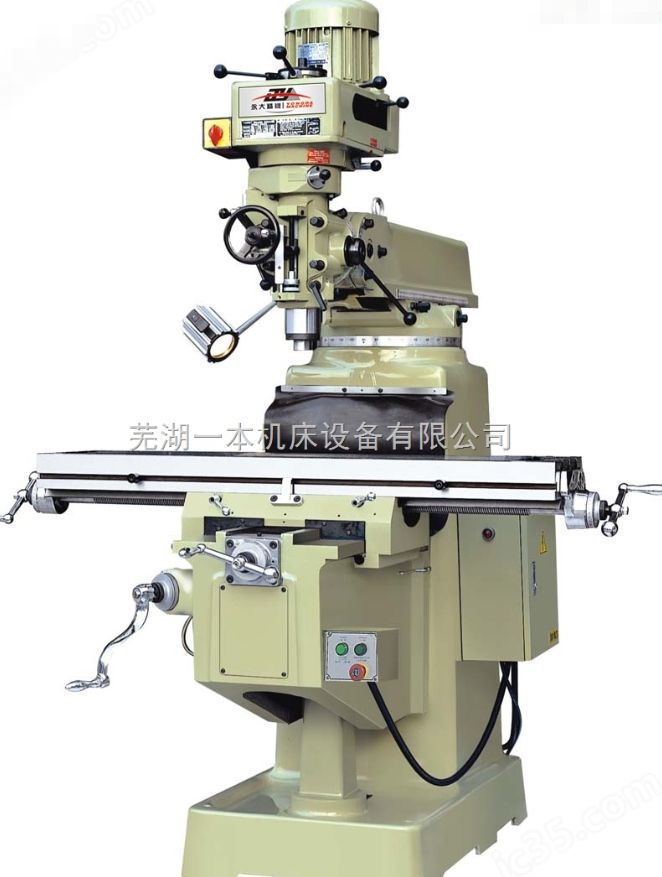

炮塔銑床

蕪湖一本機床設備有限公司生產的炮塔銑床，型號：4號，品牌：一本機床，產地：安徽·蕪湖，廠商性質：生產商。

產品簡介

*競爭力價位，耐用質量。適合小型日用家電、日用品等金屬模具的制造加工。精選優良配件，嚴格的質量監控，整機耐用時間長。

產能化、高效率、強切屑機型。銑削能力強，45#鋼 ，￠20mm粗皮刀開槽深度20mm無振動。淬火研磨之導軌，厚實床體，鑄件實效處理，整機耐用。

詳細介紹

機型YD-3H(燕軌)YD-4H(三角軌、方軌)YD-4HB(方軌)YD-4HD(三角軌、方軌)YD-5H(方軌)YD-6H(方軌)

主軸孔錐度R8/NT30R8/NT30R8/N#30R8/N#30NT40NT40

主軸轉速80-2720RPM (8速，選配) 160-5440RPM (16速，標準)80-2720RPM (8速，選配) 160-5440RPM (16速，標準)80-2720RPM (8速，選配) 160-5440RPM (16速，標準)70-3600RPM (10速)70-3600RPM (10速)70-3600RPM (10速)

主軸管直徑φ85.725mm(3.37')φ85.725mm(3.37')φ85.725mm(3.37')φ105mm(4.13')φ105mm(4.13')φ105mm(4.13')

主軸管行程127mm(5')127mm(5')127mm(5')127mm(6')127mm(6')127mm(6')

主軸進給速率0.04mm(0.0015') 0.08mm(0.0030') 0.15mm(0.0060')0.04mm(0.0015') 0.08mm(0.0030') 0.15mm(0.0060')0.04mm(0.0015') 0.08mm(0.0030') 0.15mm(0.0060')0.04mm(0.0015') 0.08mm(0.0030') 0.15mm(0.0060')0.04mm(0.0015') 0.08mm(0.0030') 0.15mm(0.0060')0.04mm(0.0015') 0.08mm(0.0030') 0.15mm(0.0060')

立銑頭傾斜角度45°前，-45°后 90°右，-90°左45°前，-45°后 90°右，-90°左45°前，-45°后 90°右，-90°左90°右，-90°左90°右，-90°左90°右，-90°左

主軸馬力3HP3HP3HP3HP5HP5HP

工作臺工作面積1270X254mm (50'X10')1270X254mm (50'X10')1370X254mm (50'X10')1370X280mm (54'X12')1370X305mm (54'X12')1370X320mm (54'X13')

左右行程800mm(36')800mm(36')850mm(36')850mm(36')900mm(36')900mm

前后行程400mm(16')400mm(16')420mm(16')420mm(16')450mm(16')450mm(16')

上下行程400mm(16')400mm(16')430mm(16')430mm(16')450mm(16')450mm(20')

T型槽(寬X槽數X槽距)16x3x65mm16x3x65mm16x3x65mm16x3x65mm16x3x65mm16x3x65mm

伸出臂行程610mm(24')610mm(24')610mm(24')610mm(24')610mm(24')610mm(24')

機械重量1280kgs(28161bs)1350kgs(28161bs)1400kgs(28161bs)1500kgs(28161bs)2000kgs(40001bs)3000kgs(40001bs)

機械尺寸(長X寬X高)1750x1700x2200mm1750x1700x2200mm1750x1700x2200mm1750x1700x2200mm2000x1700x2550mm2000x1700x2550mm

裝箱尺寸1500x1650x1980mm1500x1650x1980mm1500x1650x1980mm1500x1650x1980mm1500x1650x2200mm1500x1650x2200mm

標準附件：特別附件：

◆手動注油器◆光學尺

◆拉桿◆工作臺自動進給裝置

◆工具及工具箱◆冷卻系統及水盤

◆前后滑道護蓋

◆6'虎鉗

◆操作手冊

◆簡式電氣箱

◆工作燈

◆壓板

◆R8筒夾組/NT30(NT40)
